What is Telematics?

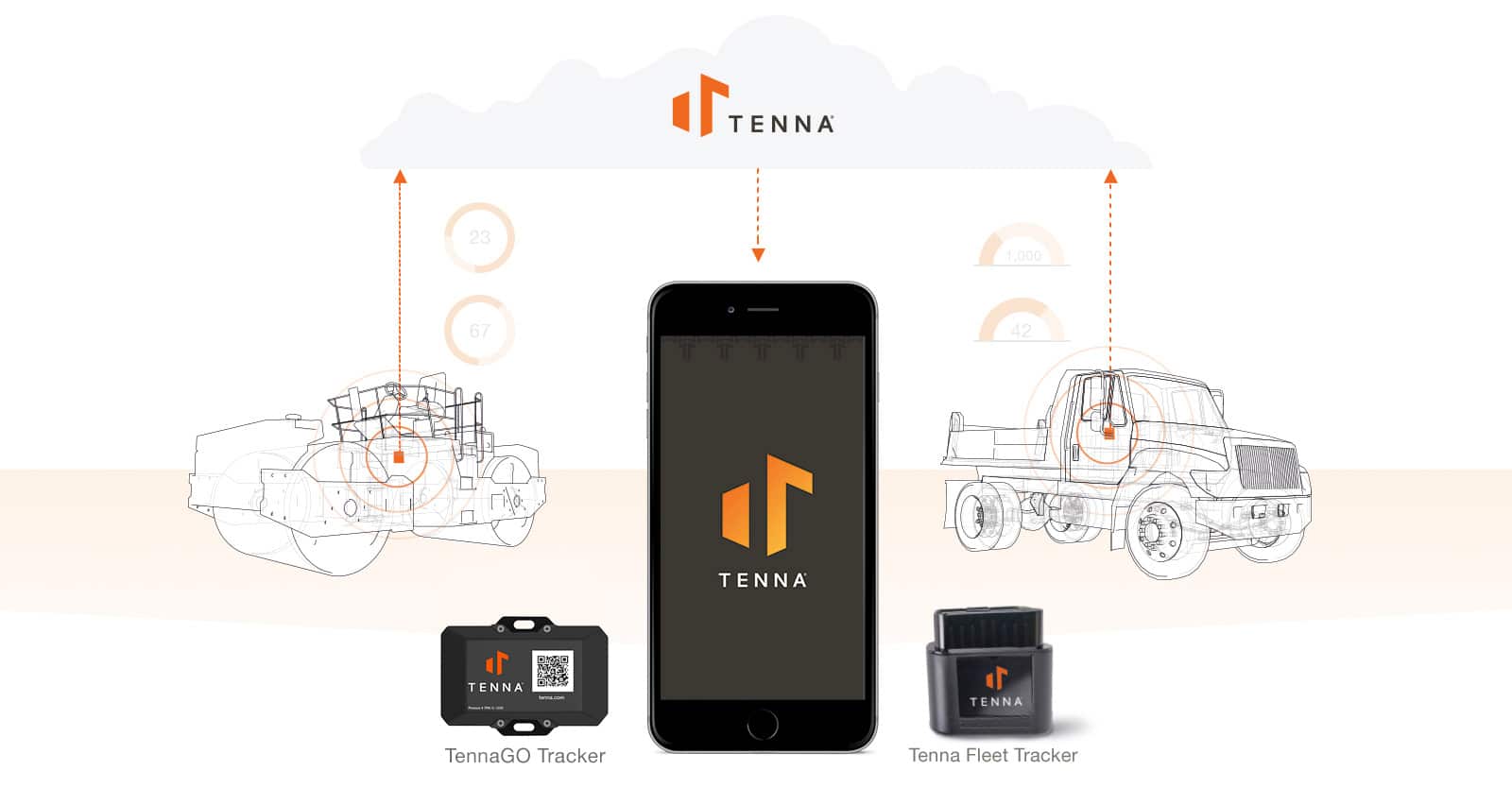

Telematics data includes location, speed, fault codes, engine hours, computer engine diagnostics, and other vital asset health data that is read through a machine or vehicle’s onboard computer. This information is accessed and transmitted through IoT technology via GPS and cellular trackers and is critical data provided in a construction equipment management system.

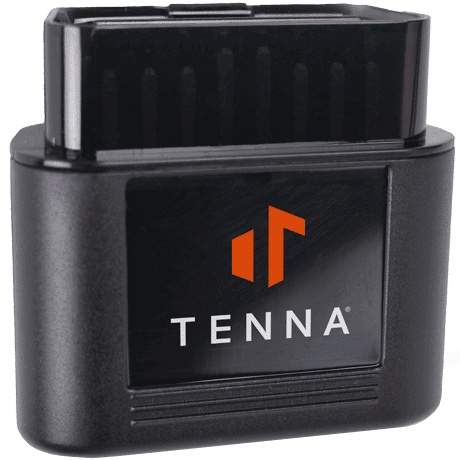

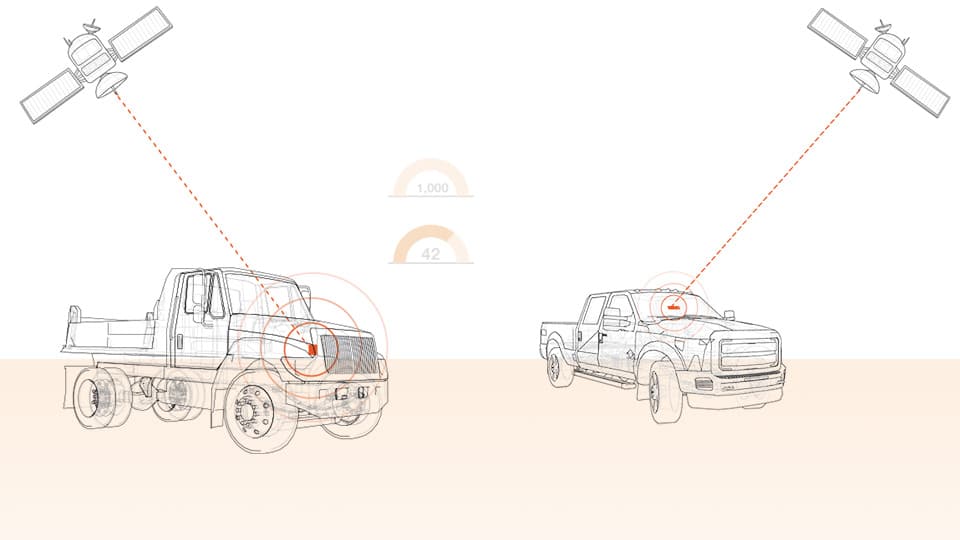

Modern vehicles and heavy equipment all contain various computers and an Engine Control Unit (ECU) that controls the engine and various aspects of the asset. These computers also contain a wealth of maintenance and diagnostic information than can be read via various standardized plug-in interfaces. Fleet trackers and other cellular GPS trackers are designed to plug into the standard OBD II or JBUS vehicle interface or wire directly into the engine. In addition to transmitting live data GPS location information over a cellular network connection, these devices are also capable of transmitting telematics data including location, speed, fault codes, engine hours and other important diagnostic information.

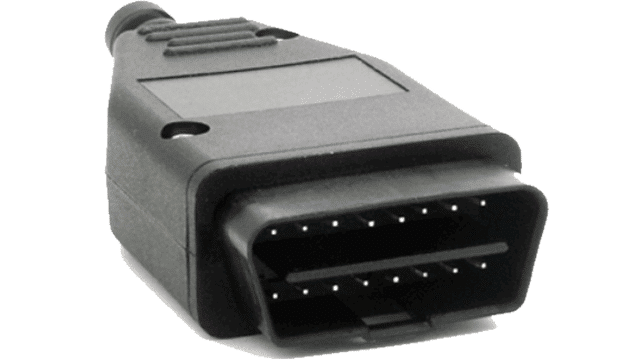

OBD II Connector
A vehicle’s computerized diagnostic data center and reporting interface is known as On-board diagnostics (OBD). Today, all consumer vehicles are required by law to have an OBD interface. The OBD-II specification is what is in use in most automobiles today. OBD-II can be accessed via a specific 16-pin connector which is also standardized under SAE J1962.

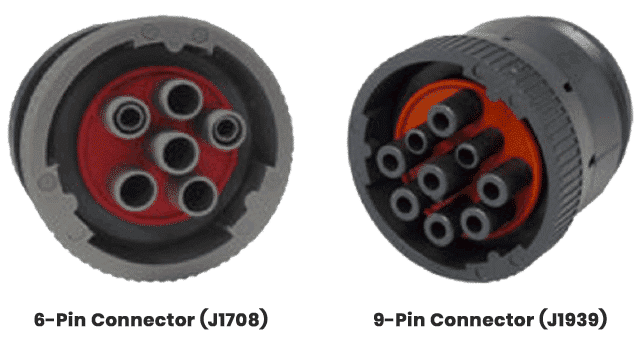

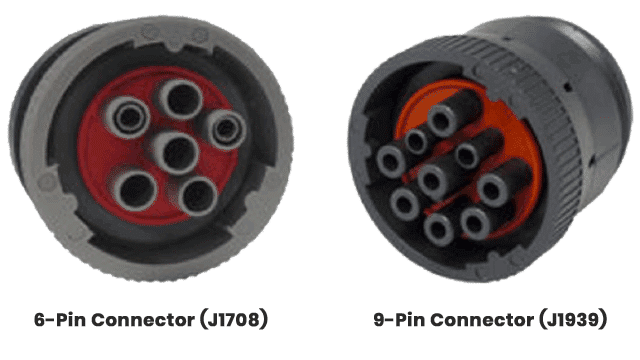

Heavy-duty vehicles utilize J-BUS, sometimes referred to as the Modbus protocol, for vehicle diagnostics. J-BUS devices are typically accessed with one of two connectors – a 6-pin J1708 or a 9-pin J1939.

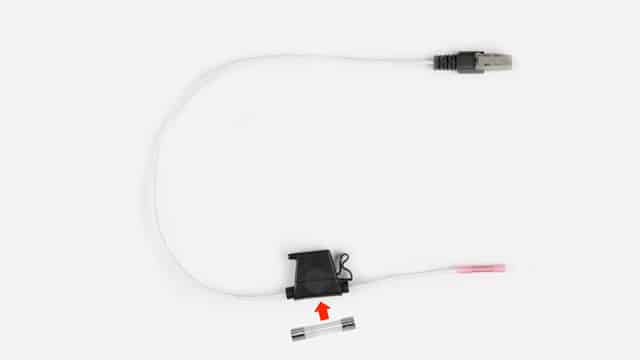

Electrical System Adapter Cables
Heavy equipment requires direct wiring of a Cellular GPS tracker to the engine. In the absence of a native interface, like the OBD II port, this connection happens under the hood. Cables from the tracker connect to the equipment ignition sensing interface to detect when and how an asset is operating.
What are the benefits of telematics?

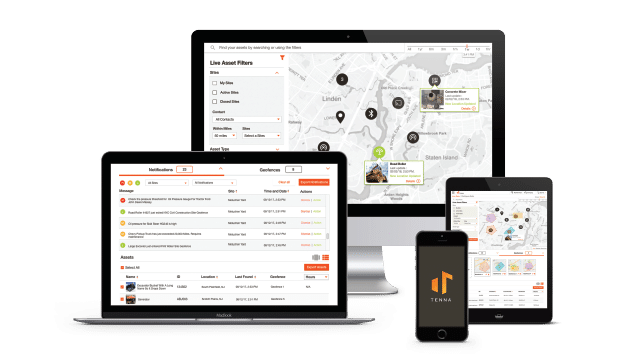

Tenna’s telematics data provides rich insights into the performance and health of your assets. Benefits include:
