Fleet Dashcam

TennaCAM

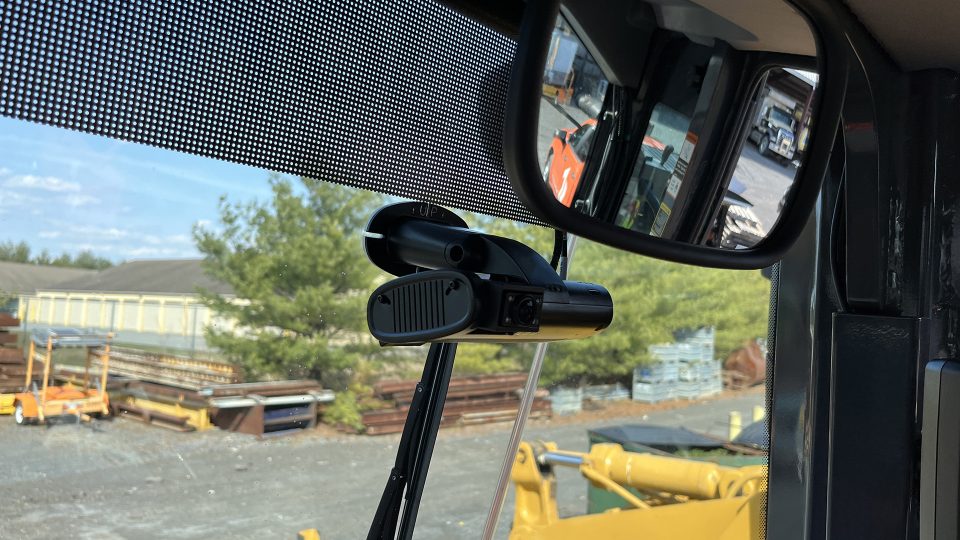

TennaCAM 2.0 Safety Dashcam

TennaCAM 2.0

Fleet Dashcam Overview

Tenna’s simple but powerful dash camera is ideal for providing context and insight into Tenna alerts for driving incidents. With TennaCAM 2.0 footage of accidents and driving events, it’s easy to work with insurance and law enforcement for accident analysis, create safety programs, reward good driving behavior, identify areas for improvement and reduce risk for drivers and companies.

Equipment Today 2023 Award for the TennaCAM 2.0
  • Heavy trucks
  • Pickup trucks
  • Vans/service trucks
  • Other fleet vehicles

How It Works

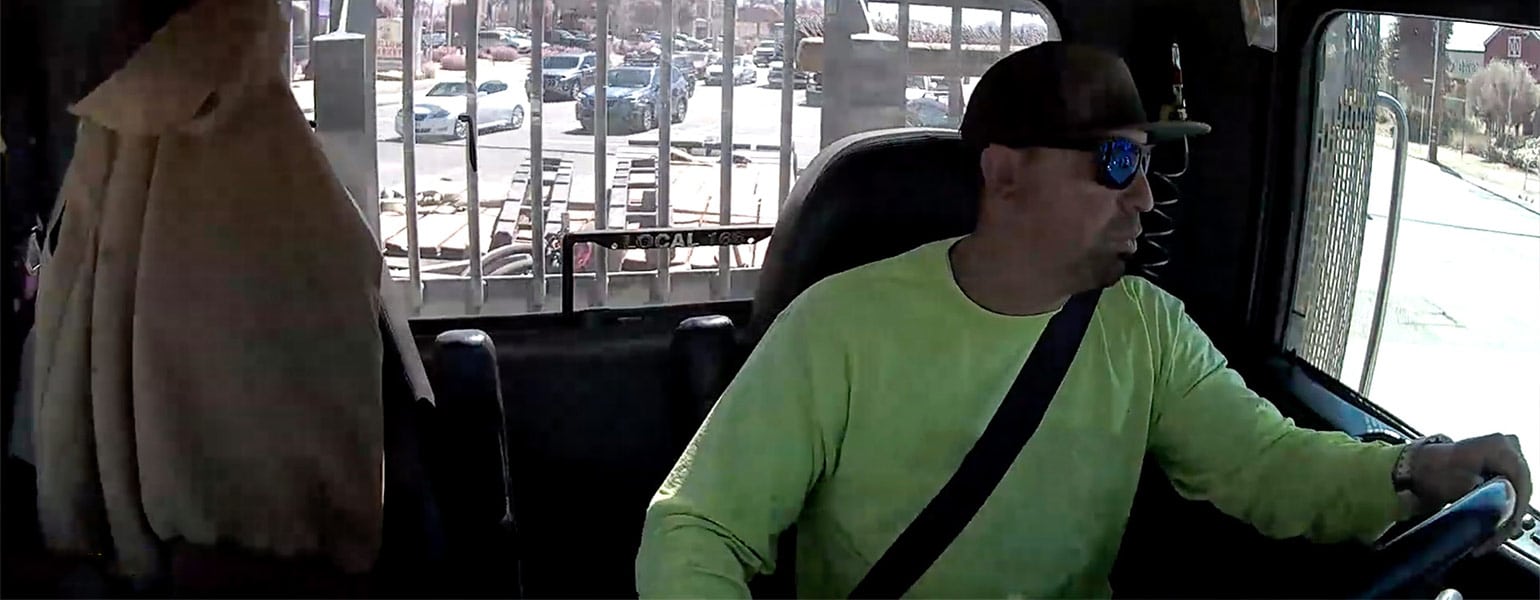

  • TennaCAM 2.0 captures videos inside and outside the vehicle. It uses AI technology to analyze driver distractions from the interior-facing camera and external hazards from the road-facing camera.
  • TennaCAM 2.0 footage acts as a source of truth and provides context related to accidents or harsh driving events such as hard braking, rapid acceleration, and distractions.
  • TennaCAM 2.0 advanced driver assistance system (ADAS) alerts drivers of potential road hazards including tailgating, headway warning, and forward collision warning.
  • View videos by event or choose a custom date range.
  • Construction dash camera footage can be used to review and learn from near misses, and to create or augment safety training and reward programs for safe driving behavior.
  • Different settings options allow users to customize their cameras to best suit their organization’s needs for safety, privacy, and liability management.
  • Expansive storage capacity when not in cellular coverage. May store events for up to 10 working days (estimating 10 hour work shifts).

Fleet Dashcam Technology

  • TennaCAM 2.0 has an independent cellular connection to transmit videos to the cloud, where they are consumed by Tenna and connected to relevant GPS alerts.
  • An internal 128GB SD card stores videos when the camera is out of cellular range, which get uploaded to the cloud when the camera reconnects to cellular service.

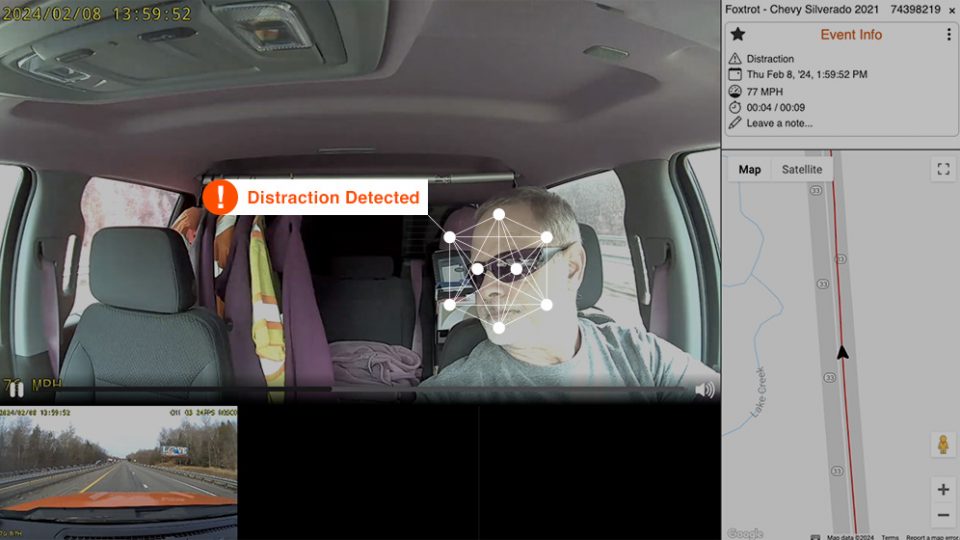

  • AI technology on the interior-facing camera detects driver fatigue, distractions, phone use, and more.
  • AI technology on the road-facing camera detects and alerts drivers of potential hazards, like tailgating, forward collision warning and headway warning.
  • Configurable Park Mode sends an alert if the vehicle experiences movement when ignition is off.

Access Video Footage via:

  • Videos can be located by event or custom date range to view external and internal vehicle footage.
  • A driver event button on the camera can be used by drivers to capture and send alerts for specific events.

Benefits

  • Match videos to Driver Safety alerts for harsh braking, max speed, and rapid acceleration to coach or commend drivers as needed.
  • Detect when drivers are fatigued or distracted and give them in-cab voice alerts to pull their attention back to the road.
  • Exonerate drivers or expedite insurance claims when accidents happen by providing video evidence to insurance and law enforcement.
  • Deter theft and provides evidence of unauthorized use of the vehicle for a set period of time after ignition is turned off with parking mode.
  • Capture footage with parking mode that can be used for better accident reconstruction, which can absolve fleets of liability in the event of an accident.
  • Capture footage of an active job site or construction activity in an urban setting even after the vehicle is turned off.

Compatible Products

Specs

  • Dual-facing full HD safety camera
  • Fields of view include:
    • Front facing – Full HD 1080p HD, D116⁰ x H100⁰ x V56⁰
    • Driver facing – Full HD 1080p D116⁰ x H100⁰ x V56⁰
  • AI-based driver management system with customizable audio alerts
  • Driver event/panic button
  • Infrared LED night vision
  • Parking mode recording
  • Industrial grade 128GB MicroSD card
  • Industrial grade SIM card
  • 4G LTE Modem
  • 3 axis accelerometer
  • Battery rundown protection
  • Independent custom aiming of driver facing and front facing cameras
  • Size – 5.09″ L x 4.01″ W x 2.41″ H
  • Optional accessories include side cameras, auxiliary cameras plus in-cabin monitor

Customer Story

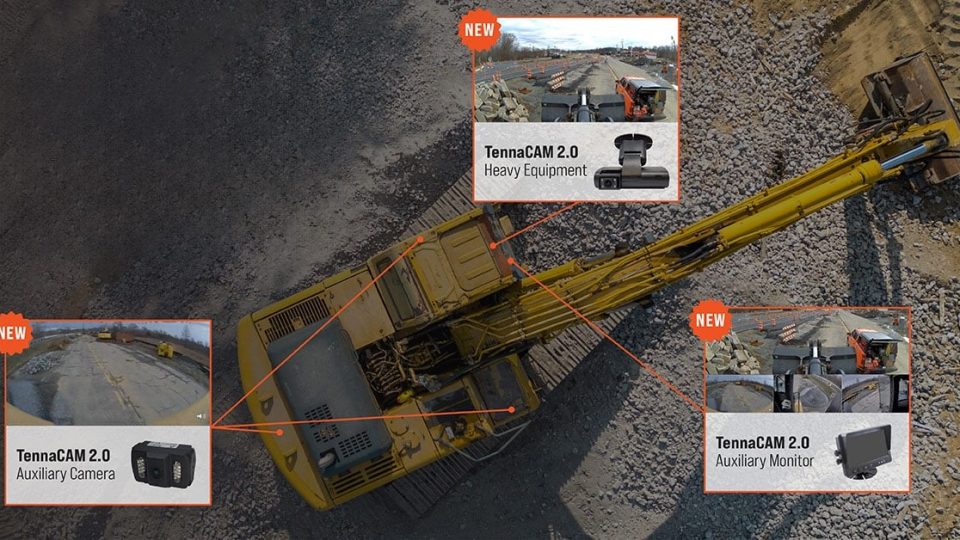

TennaCAM 2.0 Auxiliary Camera

TennaCAM 2.0 Auxiliary Camera

Auxiliary Camera Overview

Added video coverage and additional viewing angle of surroundings.

  • Heavy trucks
  • Pickup trucks
  • Vans/service trucks
  • Other fleet vehicles

How It Works

  • Suggested installation locations include back of the cabin or on top of the bed for load monitoring
  • Live stream viewing, including in parking mode
  • Access videos along with road-facing and in-cabin channels
  • Does not have backup guidance for reversing and parking assistance

Benefits & Uses

  • Visually check loads during dispatch and while parked
  • Check load size to maximize capacity and cut down on extra dispatch trips
  • Maintain quality control by reviewing loading/unloading practices
  • Confirm current status of loads mid-route

Specs

    • 1080p, FOV (DHV): 170°, 135°, 78° (±5°)
    • Night vision IR LEDs: 120° @ 2m, 100° @ 7m
    • Image mirroring capable
    • Compatible with 12 volt systems
    • IP69K
    • Built-in heater which turns on in freezing conditions
    • Optional in-cabin monitor can be installed to provide a view of the Auxiliary Camera to the driver/operator
TennaCAM 2.0 Side Cameras

TennaCAM 2.0 Side Cameras

Side Camera Overview

An added level of safety and protection around the vehicle.
  • Heavy trucks
  • Pickup trucks
  • Vans/service trucks
  • Other fleet vehicles

How It Works

  • Live stream viewing, including in parking mode
  • Access videos along with current road-facing and in-cabin channels
  • Works with any event or custom clip playback
  • Supplements the TennaCAM 2.0 Auxiliary Camera to provide a complete view around the entire vehicle

Benefits & Uses

  • Better accident reconstruction with video footage covering multiple angles around a vehicle
  • Obtain evidence of unauthorized use and deter theft

Specs

  • 1080p
  • Night vision IR LED: 15m range
  • Operating voltage range of 8V to 14V DC
  • No image mirroring
  • IP69K
TennaCAM 2.0 Auxiliary Monitor

TennaCAM 2.0 Auxiliary Monitor

Auxiliary Monitor Overview

Add an in-cab monitor for live viewing of what’s captured by cameras on the sides and rear of vehicles for full awareness.

Features

  • Add as an accessory to the TennaCAM 2.0 Auxiliary Camera or TennaCAM 2.0 Auxiliary and Side Cameras systems.
  • View live footage of Auxiliary and Side Cameras from inside the cab
  • NOTE: The TennaCAM 2.0 Monitor is not a backup camera solution.

Specs

  • Resolution: 1024 x 600
  • Screen Brightness: 500 cd/m2
  • Operating Voltage: Range 9V-36V DC
  • Max Current Draw: =< 1000 mA
  • Operating Temperature Range: -20°C to 65°C (-4°F to 149°F)
  • Full color display
