TennaMINI Asset Tracker for Heavy Equipment

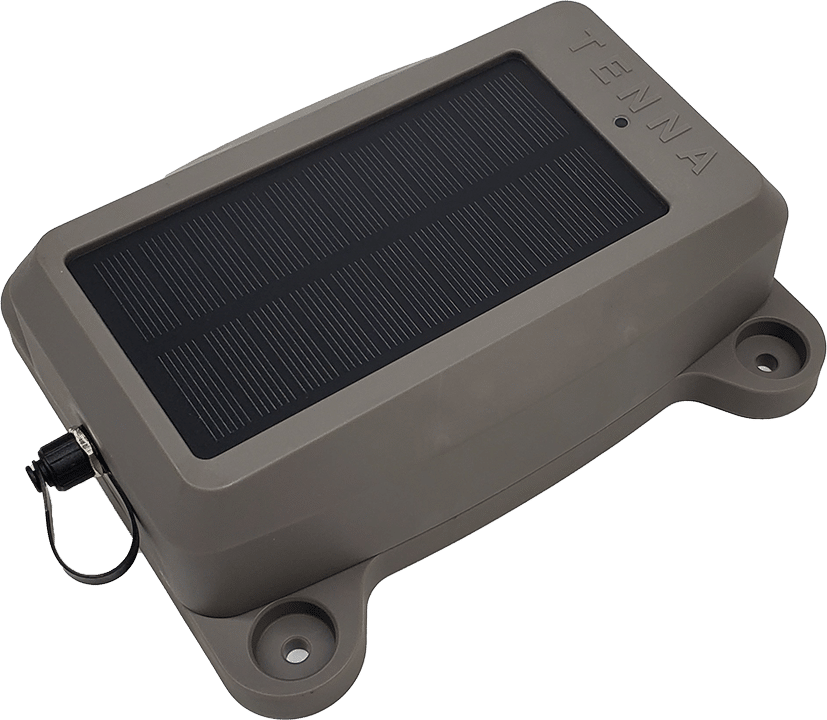

TennaMINI 2.0 Plug-In Solar

Overview

Ideal for heavy and mid-sized equipment and engine-powered machines, the TennaMINI 2.0 Plug-In Solar tracker provides precise construction equipment GPS tracking for heavy equipment and engine run-time data for high-value heavy yellow iron and mid-sized machines.

  • Excavators
  • Dozers
  • Cranes
  • Pavers
  • Loaders
  • Graders
  • Engine-powered Generators
  • The list goes on!

Use

  • Captures location and ignition on/off data, transmitted across cellular networks directly to Tenna for asset location updates.
  • Durable, easy-to-install and long-lasting with a rechargeable battery and net zero power consumption for reliable equipment tracking and management.

Technology

  • Data is transported across cellular networks directly to the Tenna platform for updates on asset location and ignition start and stop events.

Reporting

  • Reports device position (GPS location) and ignition state every two minutes when engine is running, and device position (GPS location) once every 23 hours when engine is off.
  • Immediate alert when an asset has left a geofenced location, even if powered off (e.g. being towed), to know if equipment is moving after hours or at unexpected times.
  • Recharges via sunlight or through asset power when ignition is on for indefinite lifespan.
  • Net zero impact on asset battery. Draws less power than a normal battery’s self-discharge.

Specs

  • Built-in cellular and GPS antennas for easy installation.
  • Operating modes include:
    • Running (Ignition on) – reports location, engine ignition data, asset battery level, and other tracker insights
    • Not running (Ignition off) – reports location only
  • Size – 6.5″ x 5.1″ x 1.9″

Ruggedized

  • IP69 housing
    • Extremely rugged casing with no holes
    • Tough dust and water-proof PA6 housing for impact and thermal resiliency
  • Rugged printed circuit assembly for high G-force tolerance

TennaMINI 2.0 Plug-In Solar Product Overview

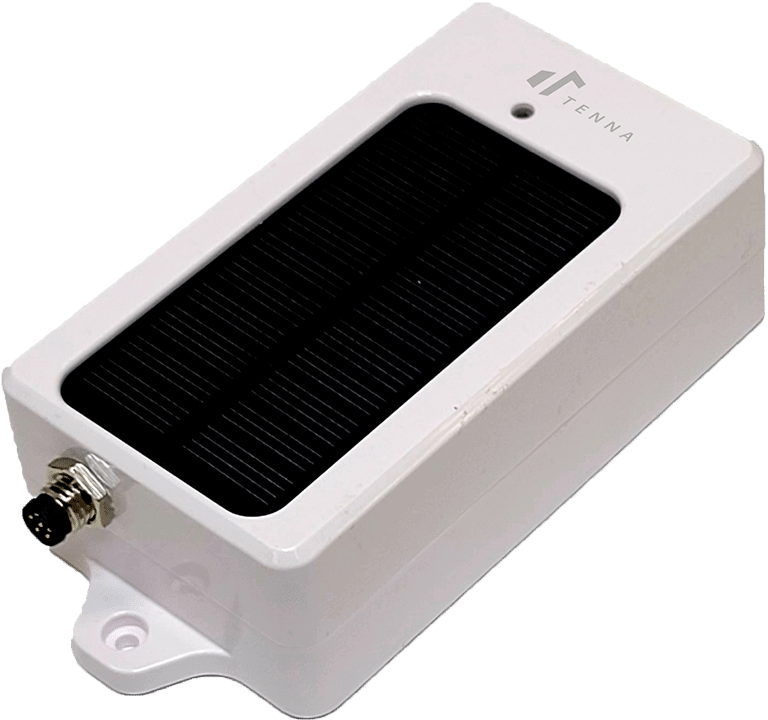

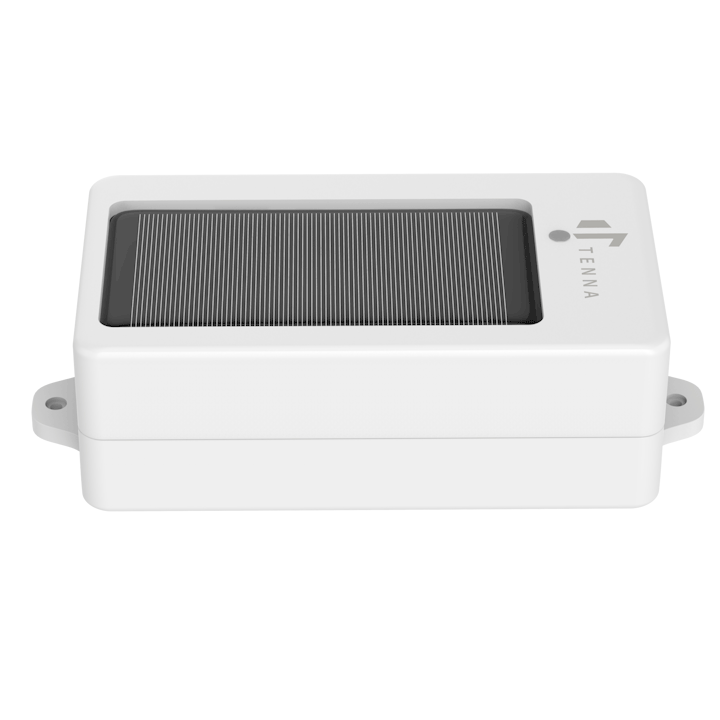

TennaMINI Solar 360 degree view
TennaMINI Solar

Overview

Ideal for mid-sized equipment tracking for your machines, the TennaMINI Tracker (Solar) provides location position updates for precise GPS equipment tracking.

Best For – Midsized Equipment

  • Trailers
  • Arrow Boards
  • Pumps
  • Conex boxes
  • The list goes on!

Use

  • This GPS tracker’s compact size and durability allows it to mount outside in full sun.
  • TennaMINI Tracker Solar is flexible, durable, easy-to-install and long-lasting for reliable equipment tracking and management.

Technology

  • Data is transported across cellular networks directly to the Tenna platform for updates on asset location.

Reporting

  • Provides device position and GPS location report every 23 hours.
  • At a reporting rate of once per day, operating time is indefinite, as long as there is a light source to energize the unit.
  • Reporting of asset motion.

Specs

  • Self-contained Solar GPS tracker.
  • Built-in cellular and GPS antennas for easy installation.
  • Charges its internal battery from the asset only when the engine is running. When the asset is not running, it charges from its built-in solar panel for an essentially unlimited lifespan.
  • Two basic operating modes are provided allowing a trade between runtime and reporting rate:
    • Stationary Reporting Interval
    • In Motion Reporting Interval
  • Size – 5″ L x 2.25″ W x 1.25″ H

Ruggedized

  • IP67 rated and verified housing
    • Tough ASA housing for impact and thermal resiliency
  • Rugged printed circuit assembly for high G-force tolerance
  • High performance Battery Management System for battery protection

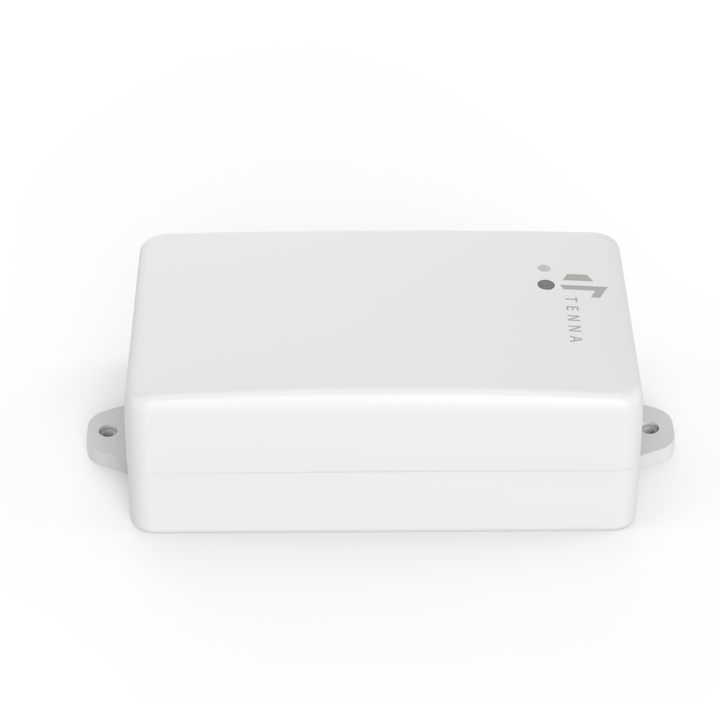

TennaMINI Battery 360 degree view
TennaMINI Battery

Overview

Ideal for tracking position of equipment and machines, the TennaMINI Tracker (Battery) provides precise GPS equipment tracking.

Best For – Midsized Equipment

  • Trailers
  • Arrow Boards
  • Pumps
  • Conex boxes
  • The list goes on!

Use

  • This tracker’s compact size and durability allows it to mount outside (recommended) or within an asset.
  • TennaMINI Tracker Battery is flexible, durable, easy-to-install and long-lasting for reliable equipment tracking and management.

Technology

  • Data is transported across cellular networks directly to the Tenna platform for updates on asset location.
  • Provides device position and GPS location report every 23 hours.

Reporting

  • At a reporting rate of once per day, operating time is up to 7 years.

Specs

  • Built-in cellular and GPS antennas for easy installation.
  • Self-contained LTE Cat M1/NB1 GPS tracker.
  • Size – 5″ L x 2.25″ W x 1.25″ H

Ruggedized

  • IP67 rated and verified housing
    • Tough ASA housing for impact and thermal resiliency
  • Rugged printed circuit assembly for high G-force tolerance

TennaMINI Product Overview

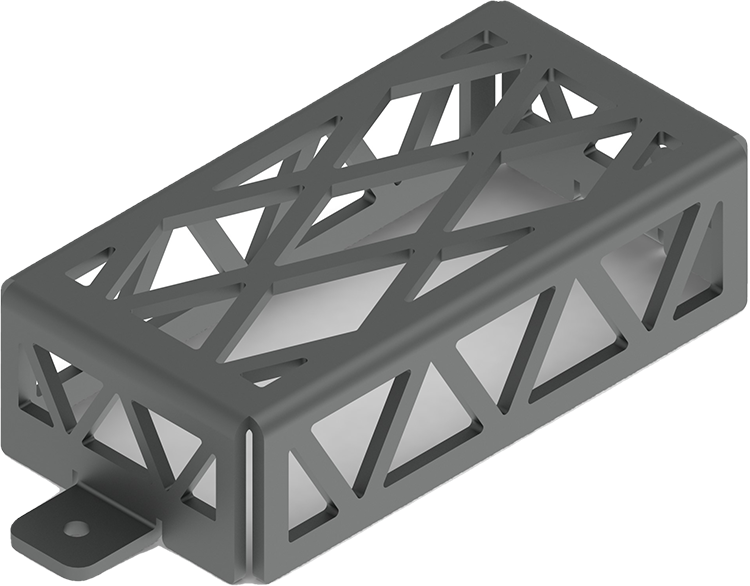

TennaCAGE protection for the TennaMINI
TennaCAGE

Overview

Ideal for protection from impact in dynamic construction environments as well as construction theft prevention for high-value equipment and associated attachments, TennaCAGE is a steel enclosure that gets welded onto assets around a TennaMINI tracker (Solar or Battery) for extra security. TennaBLE Beacons can also fit inside. The CAGE is designed to provide asset trackers an additional layer of protection and security while still giving trackers proper exposure to the sun and sky to function properly. The TennaCAGE is a great construction theft prevention as it increases the likelihood that stolen assets will be recovered and can deter theft overall by protecting asset trackers from tampering.



Bolt or weld onto your Heavy Equipment such as excavators, loaders, dozers, etc. as well as Midsized Equipment including but not limited to generators, light towers, trailers, and other towable assets.

Compatible Hardware

Details

  • Attached around asset trackers via welding or bolting down for heavy duty protection and construction theft prevention
  • Highly durable against temperature, rust and impact
  • Provides a clear view of the sky for cellular GPS signal reception for all TennaMINI trackers, and sun exposure for solar charging for TennaMINI Solar trackers

Now Available in More Sizes!

TennaCAGE Specs

  • 10.75” L x 4.25” W x 2.25” H
  • 3/16” thickness (0.1875”)
  • Meets the chemical composition bend rest requirements of ASTM A1011/1018 CS Type B
  • CS Type B, stamped steel
  • Zinc gray primer finish to protect from corrosion

TennaCAGE 2.0 Specs

  • 12.9” L x 5.9” W x 2.85” H
  • Meets the chemical composition bend rest requirements of ASTM A1011/1018 CS Type B
  • CS Type B, stamped steel
  • Zinc gray primer finish to protect from corrosion

Video

TennaCAGE Product Overview
