Tenna Tracking Devices & Tags

Track Anything and Everything

Tenna is the one asset tracking partner you need. Our complete range of asset tracking devices for equipment lets you easily manage everything in your fleet, yard or inventory.

Select from our autonomous asset trackers that use GPS or RFID to transmit data automatically without human interaction. Or choose our Bluetooth asset tags and QR code equipment tracking tags that are ideal for smaller tools or materials.

Mix and match to track anything, because they all link to one consolidated asset tracking system – Tenna!

How Tenna Works

The complete range of Tenna tracking devices for equipment spans all your assets from small tools to large vehicles or equipment.

Our Internet of Things (IoT) asset trackers use GPS to capture real time location and store it in your Tenna asset tracking system. They work automatically so your crew can focus on the work in front of them.

  • Tenna’s cellular GPS tracking system uses cellular data plans — similar to a cellphone or tablet — to locate and track assets.
  • Our LoRa GPS tracking devices for equipment leverage long-range, low-power wireless platforms to deliver critical information, no matter where your assets travel
  • For smaller tools and materials, Tenna’s asset tags are durable and affordable.
  • Our QR code equipment tracking tags come in different sizes and have 10-year life spans. Your employees simply scan the tags with the Tenna equipment tracking app on a smartphone or tablet, and asset information quickly uploads to Tenna.
  • Our Bluetooth asset tags can also be scanned by smartphone or tablet.
  • Tenna’s RFID tracking system transmits radio signals to a RFID scanner, available from Tenna. RFID information is instantly uploaded to Tenna.

A Complete Range of  Asset Tracking Devices

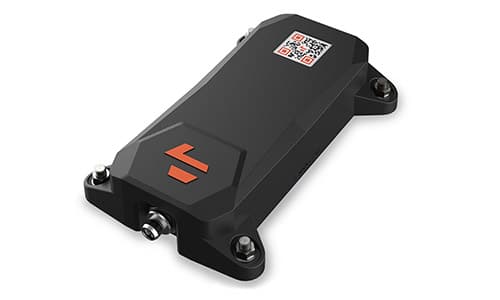

TennaONE

Cellular/LoRaWAN Battery

Get reliable tracking of equipment or vehicles on job sites, and especially your equipment which lacks its own power sources.

GPS tracking devices for equipment connect to cellular networks to automatically track your assets and provide fleet monitoring anywhere they are located.

Interfaces with the vehicle power and Electronics Control Unit (ECU) port using OBD or J1939 to continuously monitor and transmit telematics data including location, speed, fault codes, and important diagnostic information.

Automatic GPS asset trackers with extra-long life and long-range transmitters track assets wherever they’re located.

May be mounted without onboard diagnostics connection, to provide GPS asset tracking of location.

Choose Cellular LTE Cat M1 or LoRaWAN:

Cellular provides wide-range coverage is similar to LTE smartphones.

Transmitters are connected to a global navigation satellite system and provide asset location, navigation and timing services.

LoRaWAN provides a job site-specific range, approximately 1 mile in suburban areas, 0.5 mile in cities.  More gateways can be added to enable greater coverage (see below).

Batteries are designed to last 3 to 5 years depending upon the frequency of transmissions.

Size – 7.75” L x 4.75” W 1.45” H

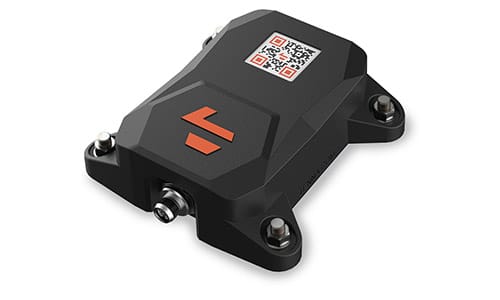

TennaONE

Cellular/LoRaWAN Plug-In

Ideal for fleet tracking of cars, trucks, heavy vehicles, and heavy equipment that provide power sources.

GPS tracking devices for equipment connect to cellular networks to automatically track your assets and provide fleet monitoring anywhere they are located.

Interfaces with the vehicle power and Electronics Control Unit (ECU) port using OBD or J1939 to continuously monitor and transmit telematics data including location, speed, fault codes, and important diagnostic information.

Choose Cellular LTE Cat M1 or LoRaWAN:

Cellular provides wide-range coverage is similar to LTE smartphones.

LoRaWAN provides a job site-specific range, approximately 1 mile in suburban areas, 0.5 mile in cities. More gateways can be added to enable greater coverage.
Automatic GPS asset trackers with extra-long life and long-range transmitters track assets wherever they’re located.

May be mounted without onboard diagnostics connection, to provide GPS asset tracking of location.

Size – 5” L x 4.75” W 1.45” H

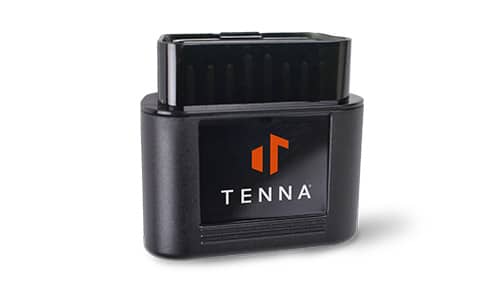

Tenna Fleet Tracker

The Fleet Tracker helps manage your Fleet vehicles and trucks by reading diagnostic info from vehicle Engine Control Unit (ECU). Features include:

  • Captures location data with built-in GPS
  • Submits the data through a 3G connection
  • Various options for Seat Belt Alarm System
  • Communicates to the app via Bluetooth

Connection Options:

  • Direct to ECU
  • Class A – J1939 wire harness
  • Class A – J1708 wire harness
  • OBD wire extension (optional)
  • Y cables also available

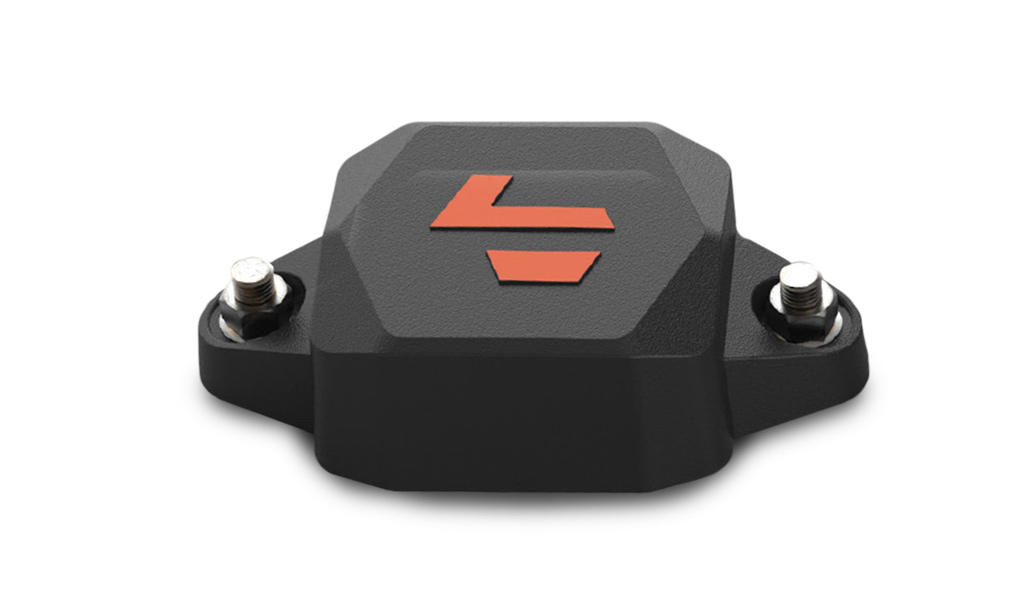

Tenna BLE Beacon

Useful for small tools and equipment. Your employees’ smartphones will automatically identify each asset’s location, without manual involvement.

This Bluetooth Low Energy Beacon sends out regular heartbeats which are recognized by the Tenna Android and iPhone asset tracking apps. The apps automatically record the location of the assets and store your data on Tenna.

Attach with screws, wire ties, bolts or epoxy.

Battery lifespan is from 1 to 3 years depending upon the ping interval and the power output of the ping.

Range at low power is approximately 40’, with longer battery life.

At high power output, the range increases to approximately 140’, at the expense of shorter battery life.

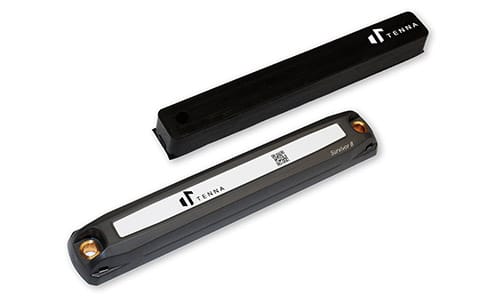

Tenna RFID

Perfect to track equipment entering or exiting your locations. In conjunction with Tenna’s RFID antennas, you can automatically track assets moving past your antennas, without any human involvement.

RFID tracking tags can be scanned using a handheld RFID scanner, or with fixed mount RFID stations with RFID sensors range of 100+ feet mounted at your project sites or adjacent to the gates of your yards.

Passive tags come in a variety of shapes and size and those without battery can last forever. Range is from 3’ to 15’ depending upon conditions.

Battery-assisted unit has a built-in battery to extend its signal range to up to 180 feet. Lifespan of the internal, non-replaceable battery is approximately 3 years, after which it will continue to work in passive mode.

Approximate size: 6.1” L x 1.02” W x 0.57” H

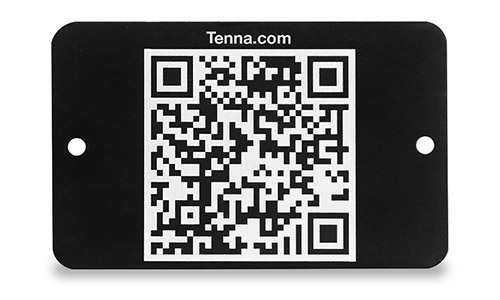

Tenna QR

Excellent for small tools and equipment and as a materials inventory tracker.

Durable labels or aluminum tags are attached to your assets and scanned with our equipment tracking app and a smartphone or tablet to quickly track your inventory.

Available in 4 styles:

  • 1.875×3 inch, large anodized aluminum
  • 1 1/8×2 inch, small anodized aluminum
  • 1.875×3 inch large weatherproof label
  • 1×1 inch small weatherproof label

10 year life spans.

Accessories

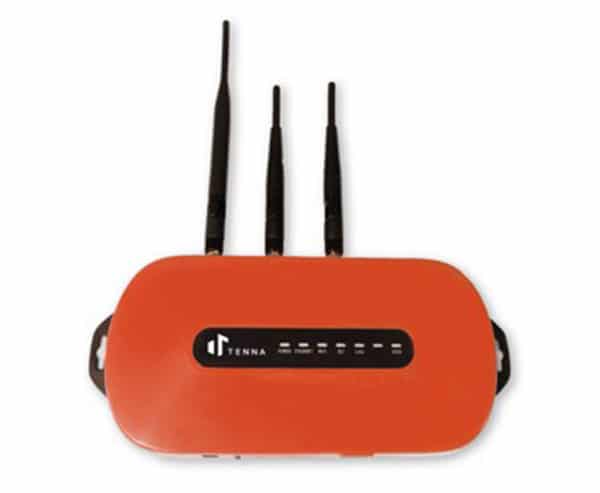

Tenna LoRaWAN Gateway

Track assets at each job site, even without cellular coverage.

This unit provides site-specific tracking. It relays LoRa-based communications from non-cellular Tenna asset trackers to the Tenna Cloud Service, and connects to the Internet via Ethernet or WiFi.

It comes ready to operate. Just plug the Gateway into Ethernet and power (a 12 VDC adapter is included) and deploy your LoRaWAN asset trackers.

Site-based LoRaWAN gateway device for use with LoRaWAN asset trackers.

Range is about 3 square miles in a typical implementation. More gateways can be added for enhanced coverage.

Approximate Dimensions: 12” L x 5” W x 1” H

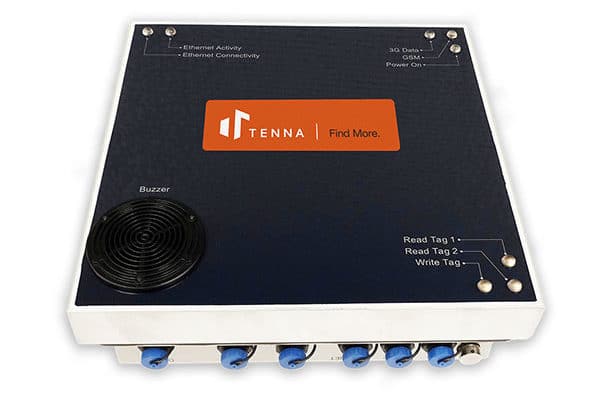

Tenna RFID

Gate System (Internal/External)

Keep track of your vehicles, equipment and tools as they travel in or out of your key sites.

Install this unit at the gates of your yard or sites. It will read the RFID asset tracking tags on your assets and transmit your data to the Tenna system. No operator involvement is necessary, providing autonomous tracking and inventory in real-time.

Multiple units may be installed for sites with multiple entry or exit locations.

Stationary site-based RFID reader for use with Tenna RFID asset tags.

Range is up to 180 feet, for signals from battery-assisted tags.

Approximate Dimensions: 14” L x 14” W x 6” H

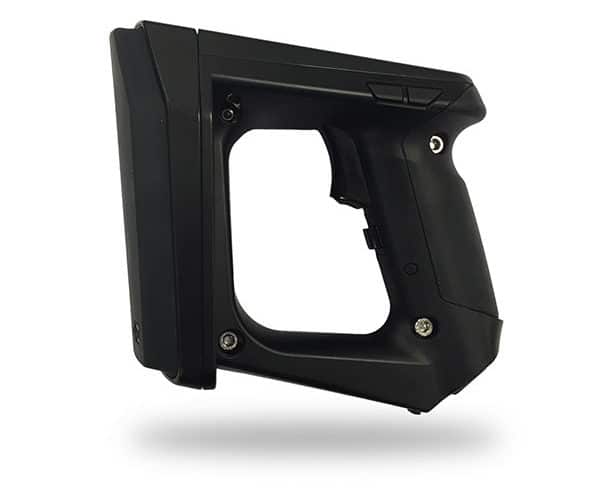

Tenna RFID

Hand-held Reader

Easily scan Tenna RFID tracking tags. Connects with your smartphone to provide real-time GPS and transmit your asset data to the Tenna database.

Reception Range – up to 15 feet with passive RFID tags and 50+ feet with Battery Assisted Passive (BAP) tags.

Life span of batteries – Rechargeable. Up to 8 hours working time on a charge.

Integrates with the Tenna App on iOS and Android

Size – approximately 6.44” L x 3.37” W x 5.77” H

What You Can Do

Our GPS tracking devices for equipment help businesses track assets and get more done.

Whatever your needs and however your operation works, Tenna can help you find more.

Use Tenna Trackers

Tenna records your assets’ location and easily captures other information such as the condition, hours, needed service or preventative maintenance. Tenna enables you to keep control all of your important mid-sized assets to find more efficiency in your organization.

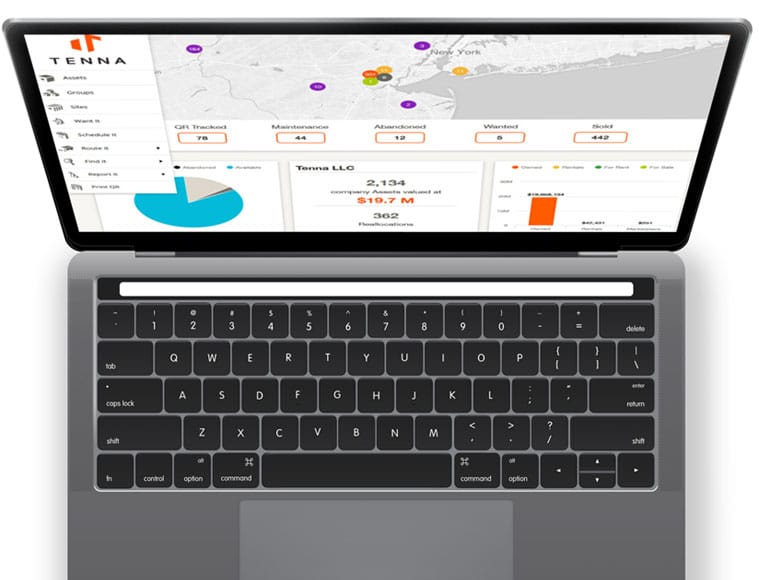

Track with Smartphones or Tablets

Details about equipment and machinery are available 24/7 via the Tenna equipment tracking app. Your entire team, in the field or the office, can now access all your asset tracking information at any time from one consolidated asset management solution.

U

Find More Automatically

Tenna’s IoT trackers work automatically so that your crews do not need to stop to track assets. Our cellular GPS or LoRa GPS units transmit asset data using power from your vehicles or from built-in long-life batteries.

Find Your ROI

Simply input the assets you want to track and we will calculate your return on investment so that you can see how tracking and managing your assets with Tenna can help you within the first year.
