TennaMINI

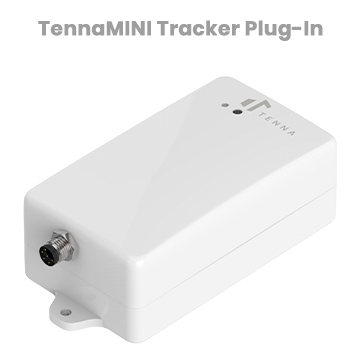

TennaMINI Tracker

Overview

Ideal for tracking the position and engine hours for heavy equipment and machines that provide power sources, the TennaMINI tracker (Plug-In) provides precise GPS tracking and engine run-time data for high-value heavy yellow iron and mid-sized machines.

Best For - Heavy Equipment
  • Excavators
  • Dozers
  • Cranes
  • Pavers
  • Loaders
  • Graders
  • Engine-powered Generators
  • The list goes on!
Use
  • This compact tracker plugs into the ignition system of a piece of equipment to read engine data and provides location information.
  • TennaMINI is flexible, durable, easy-to-install and long-lasting for reliable equipment tracking and management.
Technology
  • Data is transported across cellular networks directly to the Tenna platform for updates on asset location and ignition start and stop events.
  • Device GPS position (i.e. location) is reported every two minutes when running (ignition on), and every 23 hours when the engine is not running (ignition off).
Reporting
  • Reporting intervals span from 2 minutes when running through once every 23 hours when not running.
  • Reporting of asset motion even when ignition is off!
  • Reporting of asset motion even if plug-in is disconnected!
  • Operating time is indefinite with long-life battery that recharges when plugged into the asset battery.
  • Operates on full charge for three years (up to 1,000 pings) without power from the asset engine with single message cycle/day
Spec
  • Self-contained LTE Cat M1 GPS tracker.
  • Built-in cellular and GPS antennas for easy installation.
  • Operating modes include:
    • Running (Ignition on) - reports location and engine ignition data
    • Not running (Ignition off) - reports location only
  • Size – 5" L x 2.25" W x 1.25" H
Ruggedized
  • IP67 rated and verified housing
    • Tough dust and water-proof ASA housing for impact and thermal resiliency
  • Rugged printed circuit assembly for high G-force tolerance
  • High performance Battery Management System for battery protection
  • Ultra-low standby power when asset is off – does not drain asset battery
Product Documentation
Take a Closer Look

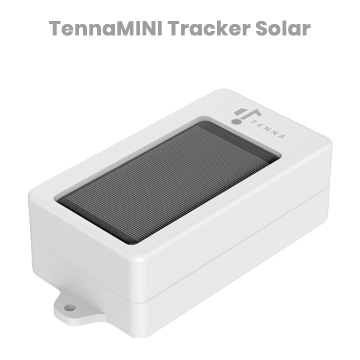

TennaMINI Tracker Solar
Overview

Ideal for tracking position of heavy equipment and machines, the TennaMINI Tracker Solar trackers provide precise GPS tracking and management for high-value heavy yellow iron assets.

Best For - Heavy and Midsized Equipment
  • Trailers
  • Arrow Boards
  • Pumps
  • Conex boxes
  • The list goes on!
Use
  • This tracker's compact size and durability allows it to mount outside in full sun.
  • TennaMINI Tracker Solar is flexible, durable, easy-to-install and long-lasting for reliable equipment tracking and management.
Technology
  • Data is transported across cellular networks directly to the Tenna platform for updates on asset location.
  • Provides device position and GPS location report every 23 hours.
Reporting
  • At a reporting rate of once per day, operating time is indefinite, as long as there is a light source to energize the unit.
Spec
  • Self-contained Solar GPS tracker.
  • Built-in cellular and GPS antennas for easy installation.
  • Built-in solar cells maintain internal battery. The constant recharging from the sun allows more flexibility in mode setting; more aggressive power profiles such as Motion Continuous become practical to use without draining the battery excessively.
  • Two basic operating modes are provided allowing a trade between runtime and reporting rate;
    • Stationary Reporting Interval
    • In Motion Reporting Interval
  • Size – 5" L x 2.25" W x 1.25" H
Ruggedized
  • IP67 rated and verified housing
    • Tough ASA housing for impact and thermal resiliency
  • Rugged printed circuit assembly for high G-force tolerance
  • High performance Battery Management System for battery protection
Product Documentation
Gallery
Take a Closer Look

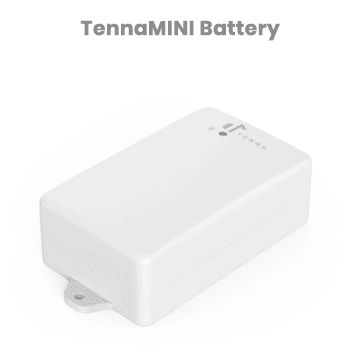

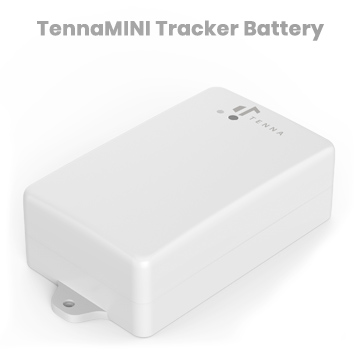

TennaMINI Tracker Battery
Overview

Ideal for tracking position of heavy equipment and machines, the TennaMINI Tracker Battery trackers provide precise GPS tracking and management for high-value heavy yellow iron assets.

Best For - Heavy and Midsized Equipment
  • Trailers
  • Arrow Boards
  • Pumps
  • Conex boxes
  • The list goes on!
Use
  • This tracker’s compact size and durability allows it to mount outside (recommended) or within an asset.
  • TennaMINI Tracker Battery is flexible, durable, easy-to-install and long-lasting for reliable equipment tracking and management.
Technology
  • Data is transported across cellular networks directly to the Tenna platform for updates on asset location.
  • Provides device position and GPS location report every 23 hours.
Reporting
  • At a reporting rate of once per day, operating time is up to 7 years.
Spec
  • Built-in cellular and GPS antennas for easy installation.
  • Self-contained LTE Cat M1/NB1 GPS tracker.
  • Size – 5" L x 2.25" W x 1.25" H
Ruggedized
  • IP67 rated and verified housing
    • Tough ASA housing for impact and thermal resiliency
  • Rugged printed circuit assembly for high G-force tolerance
Product Documentation
Gallery
Take a Closer Look
