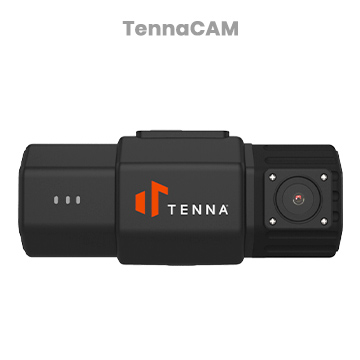

TennaCAM

Overview

Ideal for monitoring on-road safety incidents and driver behavior, the TennaCAM provides footage of accidents or harsh driving events for trucks and vehicles in your construction fleet.

Best For - Vehicle fleet:
  • Heavy trucks
  • Pickup trucks
  • Vans/ service trucks
  • Other fleet vehicles
Use
  • This dashcam works in conjunction with an OBD-II or JBUS tracker to detect and prompt a real-time recording when pre-defined driving events or incidents are triggered.
  • TennaCAM captures and delivers footage that acts as a source of truth and provides context related to accidents or harsh driving events such as hard braking, rapid acceleration and collisions. This data delivers insights that can improve safety and reduce risk over time during on-road trips.
Technology
  • The TennaCAM connects to its paired OBD-II or JBUS fleet tracker via WiFi. Capture of video from driving events is triggered via Bluetooth link between the tracker and the TennaCAM.
  • Event driven video clips from the camera device are then transported across cellular networks directly to the Tenna platform for review.
Access video footage via:
  • Tenna platform post trip event
  • Cloud DVR technology to call specific footage timeframes through the platform
    • Associated fees may apply
  • Inserting the SD card into a computer
  • Camera is on and ready to record as long as the vehicle is powered on
  • Event-based footage includes six seconds before and four seconds after each harsh driving event
Specs
  • Dual-facing HD safety camera
  • WiFi-Direct connection to a paired OBD-II or JBUS fleet tracker
  • Bluetooth enabled for triggering the camera to record upon event detection
  • Fields of view include:
    • Front facing – 155-degree field of vision
    • Driver facing – 120-degree field of vision
  • 1080p HD video resolution for detail and clarity
  • 64GB of storage (48-110 hours of recording) in removeable SD card
    • Recording hours will double with only one camera recording
    • Larger SD cards can be used to increase storage
  • Built in speaker and microphone
  • Panic button for manual recording
  • Powered by USB micro B type connector; OBD plug power adapter is provided
  • Size – 4.180" L x 1.635" W x 1.635" H
